Supported devices for Lightspeed Hub

Lightspeed Hub makes hardware easy. Once installed on your computer, it helps you set up your hardware in fewer steps and guides you through the process. It also connects directly to Lightspeed Retail POS, bringing you a reliable connection to your hardware throughout the day.

At this time, however, only the below devices are supported with Hub. And although Hub is designed to guide you through the setup of your device, articles with more in-depth setup instructions are included below should you need them.



Receipt printers

The supported receipt printers for Hub can connect to your computer in three possible ways. Which connection type(s) each receipt printer can support varies from one to the other.



USB Connects directly to your computer with a USB cable.
LAN Connects directly to your network with a LAN cable. Your computer then connects to your printer through your network.
WLAN Connects wirelessly to your network. Your computer then connects to your printer through your network.



Epson



Device Connection types Setup instructions

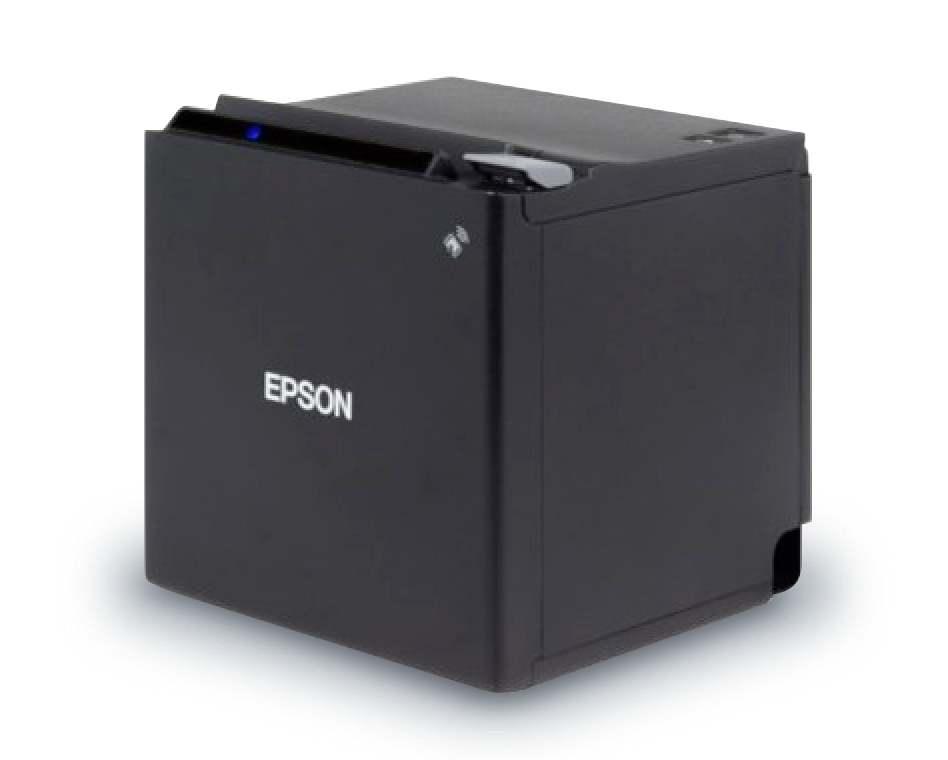

Epson TM-m30

  • USB
  • LAN

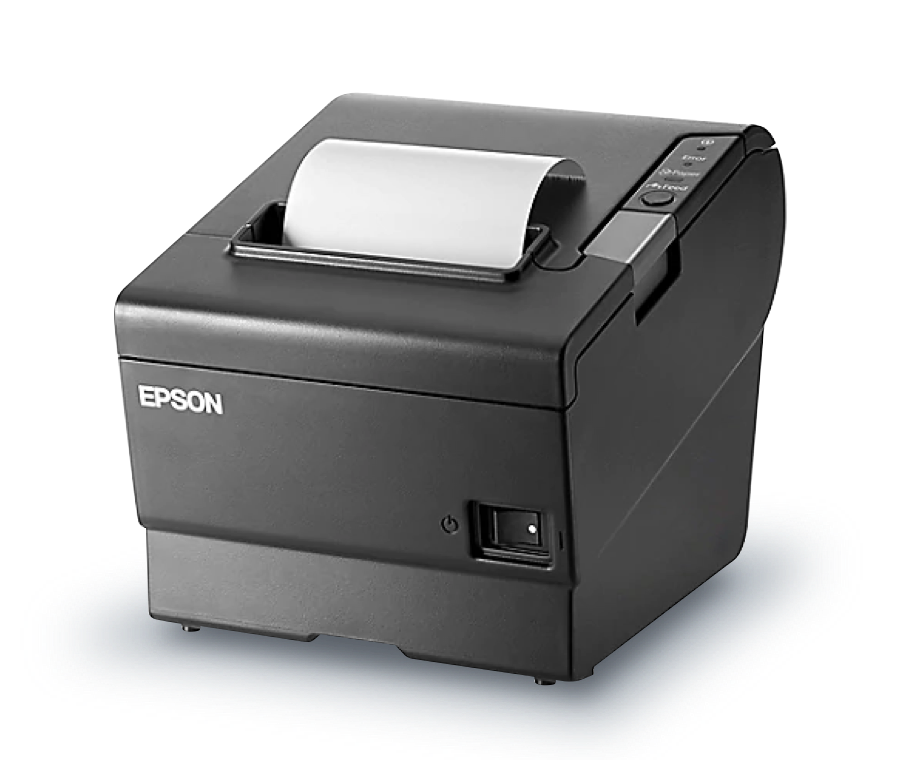

Epson TM-T88V

  • USB


Epson TM-T88VI

  • USB
  • LAN



Star Micronics



Device Connection types Setup instructions

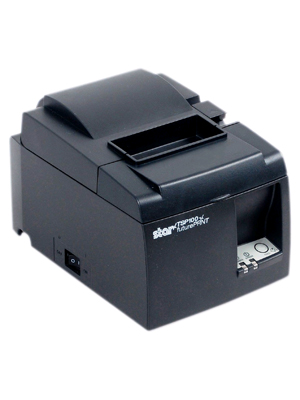

Star TSP100U



  •  USB

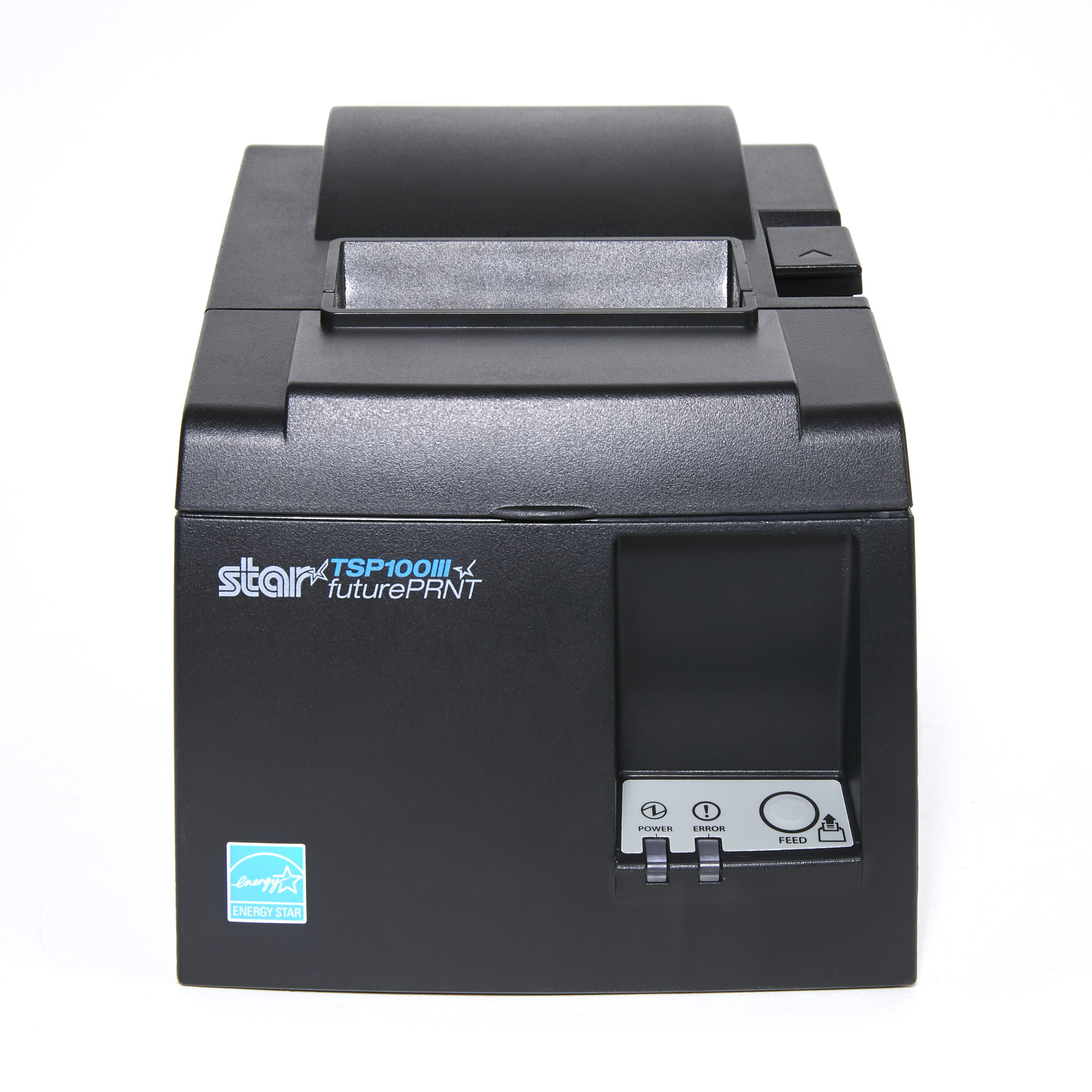

Star TSP100IIIU

  • USB



Star TSP100LAN

  • LAN


Star TSP100IIILAN

  • LAN



Star TSP100IIIW

  • WLAN

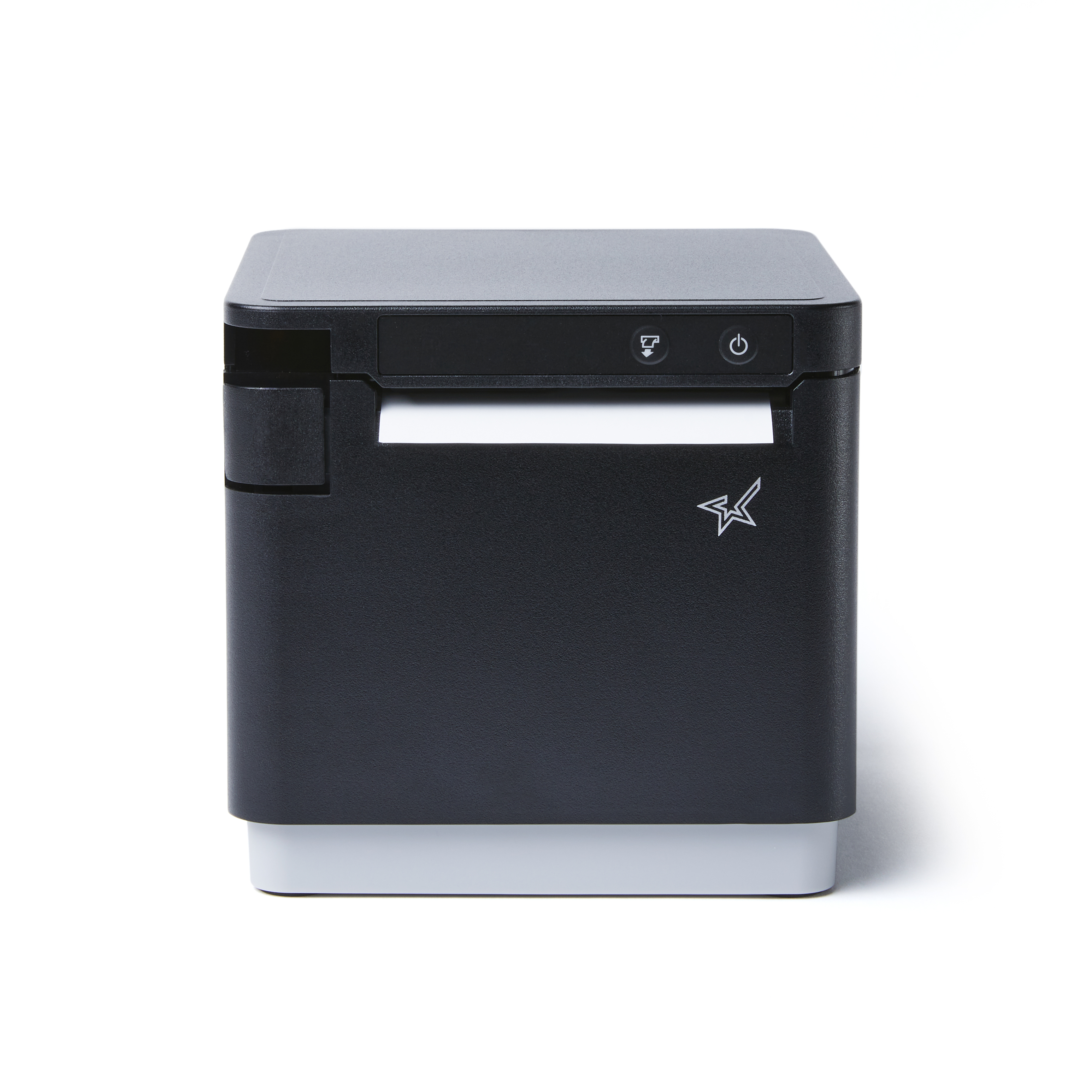

Star mC-Print3

  • USB
  • LAN



Label printers

The supported label printers for Hub are the Zebra ZD410, ZD420, and ZD421. The USB models of the ZD410, ZD420, and ZD421 connect to your computer with a USB cable or your network with a LAN cable. If you have one of the Bluetooth models of the ZD410, you can connect it to both your computer with a USB cable and your iPad via Bluetooth.



Device Connection types Setup instructions

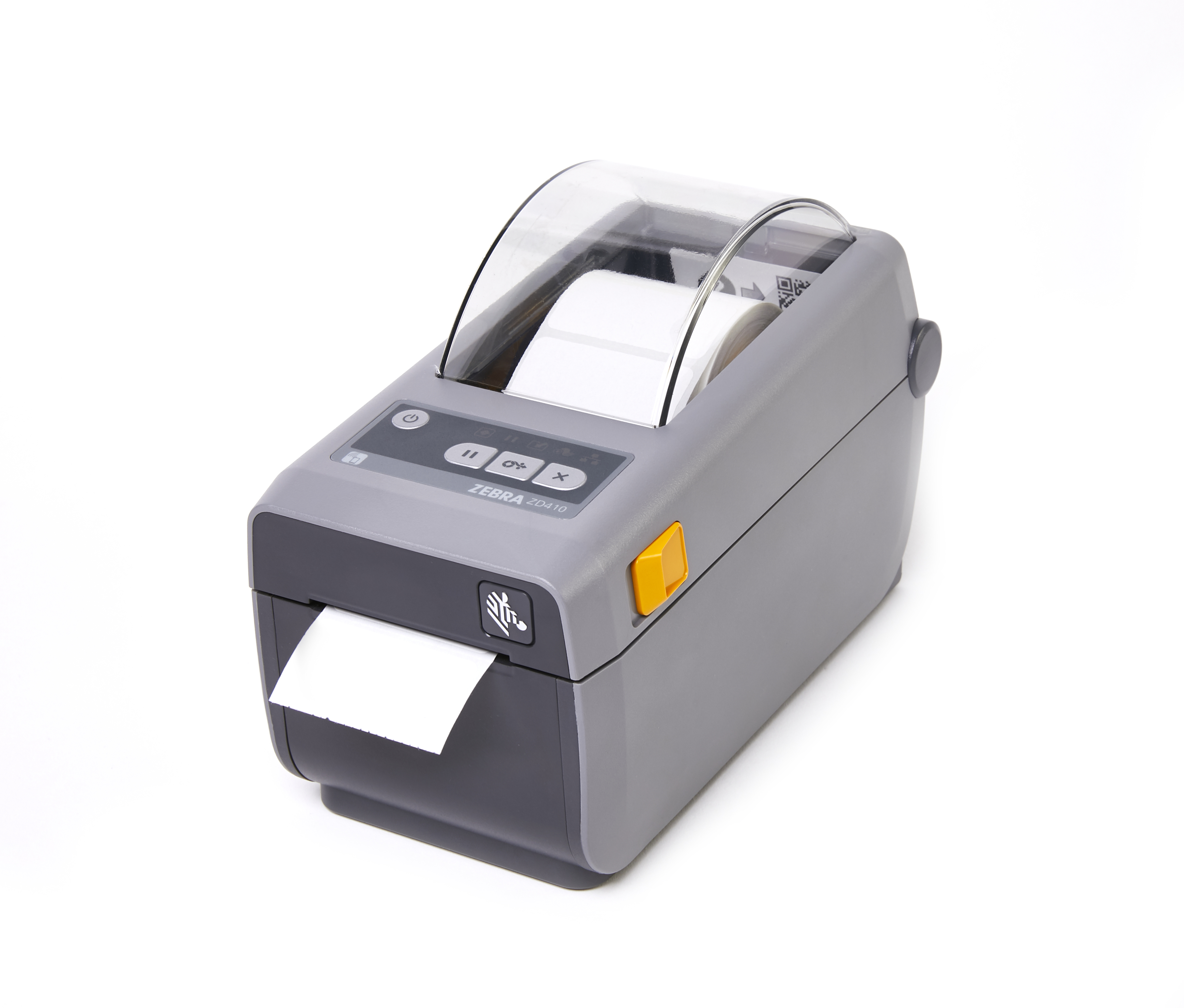

Zebra ZD410



  • ZD41022-D01M00EZ (supported but no longer sold)
  • ZD41022-D01000EZ
  • ZD41022-D0E000EZ
  • ZD41022-D0PE00EZ
  • USB
  • LAN


Zebra ZD410



  • ZD41022-D0PE00EZ (only if sold in APAC region)
  • ZD41022-D01W01EZ
  • ZD41022-D0EW02EZ
  • ZD41022-D0PW02EZ
  • USB
  • LAN
  • Bluetooth (iPad only)


Zebra ZD420



  • ZD42042-D01000EZ
  • USB
  • LAN

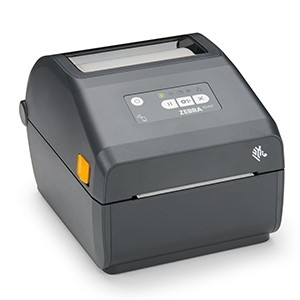

Zebra ZD421



  • ZD4A042-D01M00EZ
  • USB
  • LAN

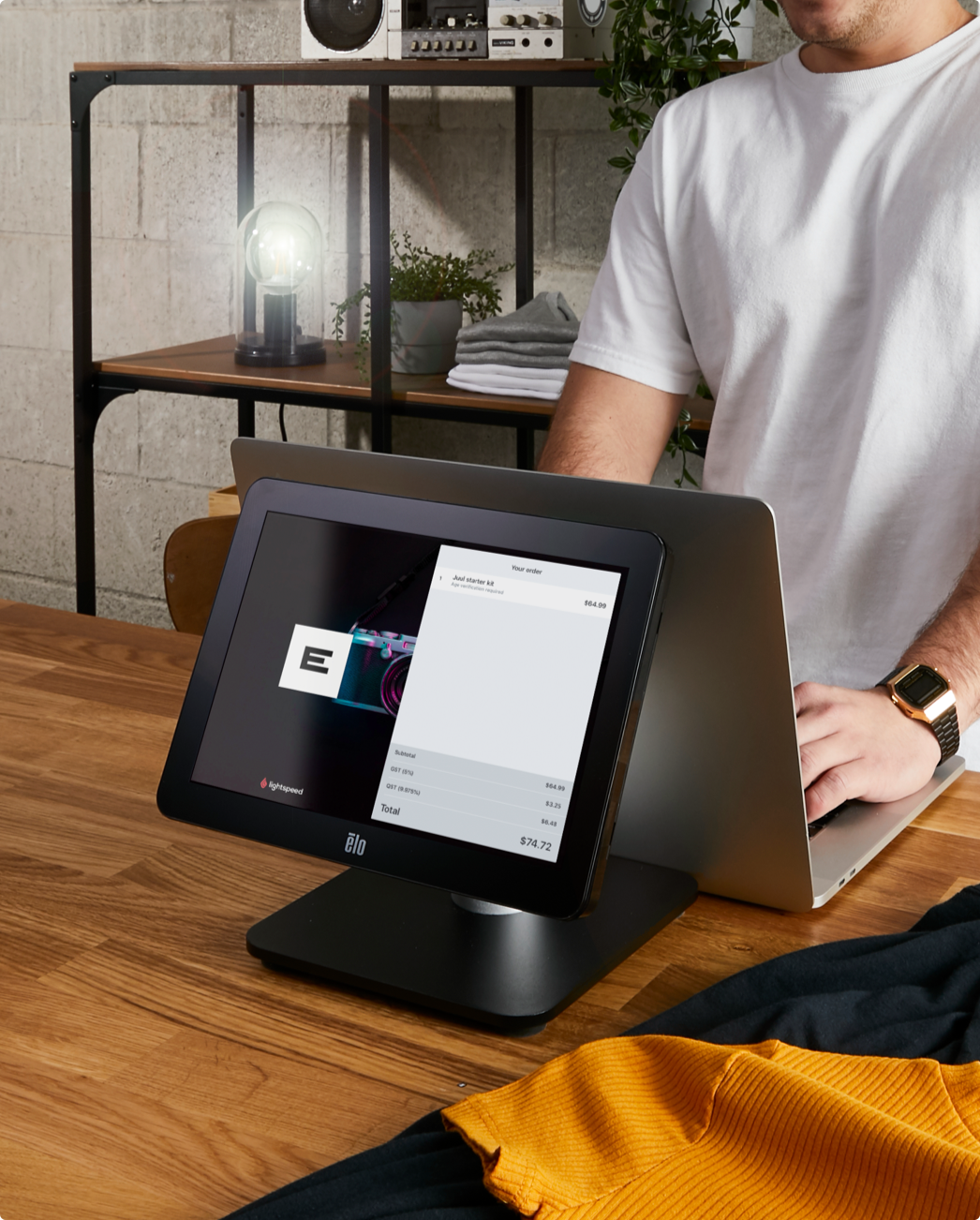

Customer Facing Display

Sharing the checkout experience with Customer Facing Display (CFD) is made possible by connecting a secondary display to Hub. This is the recommended setup for optimal performance. If you're not using Hub to connect your secondary display, however, any secondary display (e.g. monitor) or device (e.g iPad) with a web browser is compatible as well. You can set it up in Retail POS under Devices.



Device Connection types Setup instructions


Monitor

Using wire (e.g. HDMI, VGA, etc.)
